Why Can Some Packaging Boxes Be Torn in a Perfectly Straight Line? – The Secret of Scoring (Creasing) Technology

1. What Is Scoring (Creasing)?

Scoring is the process of creating a compressed, weakened line on paperboard or corrugated board. This line acts as a hinge or a tear guide.

There are two main purposes of scoring:

1. Folding: A score line allows the board to fold cleanly without cracking the printed surface. You see this on every folding carton – the lines where the box bends to form its shape.

2. Tearing: A score line can also be designed to allow the consumer to tear the box open along a straight, controlled path. This is common on tear strips, perforated openings, and easy‑open flaps.

When a score is made correctly, the board will follow that line perfectly when folded or torn. When it is made poorly, the board will resist, crack, or tear unpredictably.

2. How Scoring Works – The Science of a Straight Tear

To understand why scoring works, you need to understand what happens when you tear paper or cardboard.

Without Scoring (Random Tear)

When you tear an unscored piece of paperboard, the tear follows the path of least resistance. It will zigzag, follow the direction of the paper fibers, and often travel at an angle. The result is a rough, uneven, unpredictable edge.

With Scoring (Controlled Tear)

A score line creates a localized weakness in the board. The fibers are compressed and crushed along a narrow line. This line becomes the path of least resistance. When you apply tearing force, the board breaks cleanly along that compressed line.

Think of it like a line of perforations in a sheet of stamps. The perforations make it easy to tear along a straight line. Scoring is similar, but instead of cutting holes, it compresses the fibers.

3. Types of Scoring – Not All Scores Are the Same

Different types of boxes and different materials require different scoring methods. Here are the most common.

Crease Scoring (For Folding)

This is the most common type of scoring on folding cartons. A metal rule (the creasing rule) presses into the board from the top, while a matching channel (the creasing matrix) supports the board from below. The board is compressed, not cut.

Result: A smooth, rounded indentation. The board folds easily, and the printed surface does not crack. This type is not designed for tearing, but it does create a weak line that can guide a tear.

Perforated Scoring (For Tearing)

This combines cutting and creasing. A series of small cuts (perforations) are made through the board, alternating with uncut bridges. The board is weakened significantly, allowing the consumer to tear it apart by hand.

Result: A straight, easy tear. This is what you see on tear strips on cereal boxes, shipping boxes with “easy open” flaps, and many e‑commerce mailer boxes.

Micro‑Perforation (For Clean Tear)

A variation of perforated scoring with very small, closely spaced cuts. The tear is extremely clean and almost invisible before tearing.

Result: A near‑perfect straight tear that leaves a smooth edge. Often used on high‑end packaging where appearance matters.

Rotary Scoring (For High Speed)

Used on high‑volume corrugated box machines. A rotating wheel presses against the board to create a crease. Fast and efficient, but less precise than flatbed scoring.

Result: Good for folding, less ideal for precise tear guides.

4. Why Some Boxes Tear Straight and Others Do Not – Common Problems

Even with scoring, tears can go wrong. Here is why.

No Score Line at All

Some cheap or simple boxes are not scored for tearing. The consumer must tear anywhere, and the result is always messy.

Solution: Always request a tear score if you want an easy‑open feature.

Score Is Too Shallow

If the creasing rule does not compress the board deeply enough, the line is not the weakest path. The tear will wander.

Cause: Worn creasing rule, incorrect pressure setting, or board that is too thick for the rule.

Score Is Too Deep (Cut Through)

If the score cuts completely through the board, the box loses structural strength. The flap may open during shipping, or the box may tear accidentally.

Cause: Misaligned creasing matrix, excessive pressure, or the wrong rule type.

Wrong Score Direction

Paperboard has a grain direction (the direction in which most fibers align). Scoring parallel to the grain tears differently than scoring perpendicular to the grain.

General rule: For a clean tear, the score should be perpendicular to the grain. The tear will follow the score line, and the fibers will break cleanly. Scoring parallel to the grain can cause the tear to follow the fibers instead of the score.

Poor Quality Board

Low‑quality recycled board with short, weak fibers may tear unpredictably even with a good score. The fibers break irregularly, creating a fuzzy or jagged edge.

Solution: Use higher quality board with longer fibers (virgin or high‑grade recycled).

5. How Boxes Are Designed for Easy Tearing – Real Examples

Let me show you how scoring is used on different types of packaging.

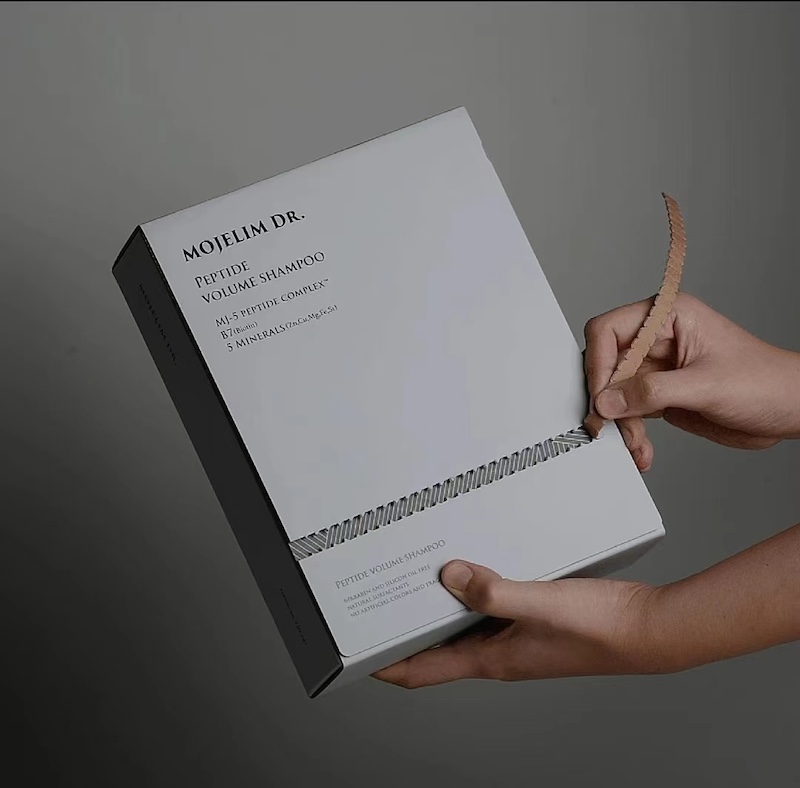

E‑Commerce Mailer Box (Tear Strip)

Many mailer boxes have a perforated tear strip running around the middle or near the top. The customer pulls a tab, and the tear strip comes off, opening the box cleanly. No knives or scissors needed.

Why it works: The perforations create a line of weakness. The uncut bridges hold the box together during shipping. When the customer pulls, the bridges break sequentially, creating a straight tear.

Folding Carton (Tuck Flap)

A standard folding carton does not have a tear score. Instead, the box is opened by pulling a tuck flap. No tearing occurs. But the folding scores (where the box bends) are crease scores. If you try to tear the box along those fold lines, it will tear reasonably straight because the fibers are already compressed.

Corrugated Shipping Box (Easy Open)

Some corrugated boxes have a perforated tear strip near the top. The customer pulls a plastic or paper tab, and the strip tears off, allowing the box to open like a clamshell.

Why it works: The perforations are deep enough to weaken the board but not so deep that the box falls apart during transit.

Frozen Food Box (Perforated Opening)

Many frozen food boxes have a perforated section that can be torn open to access the contents. The perforations are often micro‑perforations for a very clean edge.

6. How to Ensure Your Boxes Have Clean, Straight Tears – A Guide for Brand Owners

If you are ordering custom boxes and want an easy‑open feature, follow these steps.

Step 1: Decide Where You Want the Tear

Do you want a tear strip across the middle? A perforated flap? A corner pull tab? Define the opening method clearly in your design brief.

Step 2: Choose the Right Score Type
